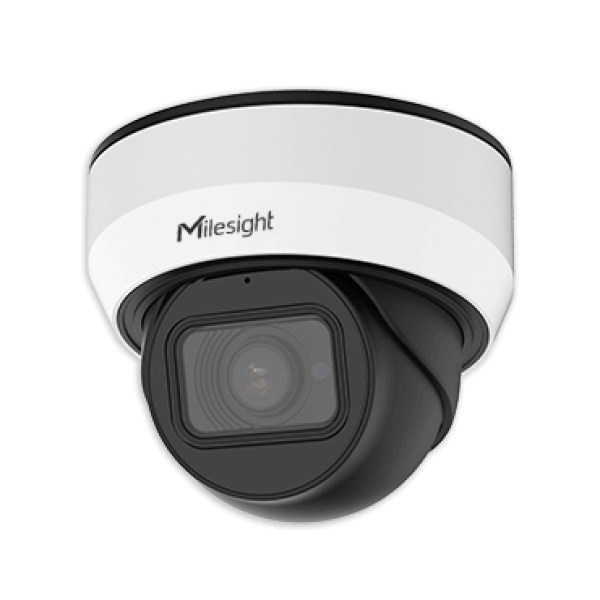

AI Motorized Mini Dome Network Camera

The AI Camera Series can intelligently filter objects to focus on detecting people and vehicles in multiple events such as entering and exiting a region, stopping, advanced motion detection and so on. The high accuracy and AI algorithm-based real-time people counting, with statistical reports for further analysis, help to make quick security management decisions and increase the operational efficiency of the company.

The face detection function detects human faces in the monitoring scene and captures snapshots, greatly improving monitoring efficiency and benefiting large population-related sectors such as public safety, access control and business management. The Milesight AI IR mini dome network camera offers up to 4K resolution (3840*2160, four times higher than Full HD), providing users with an ultra-high definition video viewing experience.

Milesight's sensor-based WDR technology enables the camera to record more scene detail with faithful colour reproduction even in extreme backlight and high contrast conditions. The ratio of the brightest light signal to the darkest light signal reaches 140 dB. Adopting P-Iris control technology, Milesight AI Motorized Dome Network Camera is able to optimize the iris opening under all lighting conditions, offering images with better contrast, clarity, resolution and depth of field.

Equipped with motorized zoom & focus lens, Milesight AI Motorized Dome Network Camera allows remote control of focal length, iris and focus through the use of a lens controller, which is perfect for long distance surveillance in areas such as parking lots, highways and ports. Coming with the concealed cable winding design, the integrated junction box not only ensures the AI Motorized Dome Network Camera a simplified installation with better aesthetics and professional look of the video surveillance system, but also provides higher operation stability.

Technical Specifications

• Image Sensor 1/2.8″ Progressive Scan CMOS
• Min. Illumination Color: 0.01Lux @F1.2, Color: 0.012Lux @F1.4, B/W: 0Lux with IR on
• WDR 120dB Super WDR
• Shutter Time 1/100000s∼1s
• Day/Night Mode Day/Night/Auto/Customize/Schedule
• IR Distance Up to 50m
• S/N >55dB
• Lens Lens Motorized [email protected], P-Iris(Optional)
• Field of View H107°~H33°/D125°~D37° /V58°~V18°
• Mount Φ14
• Focus Control Auto/Manual
• Iris Control(Optional for I Series) Auto/Manual
• Video Max. Image Resolution 3840x2160
• Primary Stream 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
• 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
• Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
• 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
• Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
• 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
• Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
• Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
• Privacy Masking Up to 28 areas(24 mask areas and 4 mosaic areas)
• ROI Up to 8 areas
• Image Settings Saturation/Brightness/Contrast/Sharpness
• Interface Ethernet 1*RJ45 10M/100M Ethernet Port
• Audio I/O Built-in Microphone; 1/1 (Multi-interface Version)
• Alarm I/O 1/1 (Multi-interface Version)
• Network Storage NAS(Support NFS, SMB/CIFS), ANR
• Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
• Audio Audio Compression G.711/AAC/G.722/G.726
• Audio Sampling Rate 8/16/32/44.1/48KHz
• Audio Bit Rate 16~256kbps
• Two-way Audio Support
• Intelligent Analytics Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
• Face detection Detect and capture faces, get real-time snapshots
• People Counting& Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting
• System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
• Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
• SIP/VoIP Support Yes, Voice&Video-over-IP
• Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
• Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
• System Compatibility ONVIF Profile G & Q & S & T, API
• General Working Temperature -40℃∼60℃
• Working Humidity 0∼90%(Non-condensing)
• Power Supply PoE (802.3af); PoE (802.3af) / DC 12V±10% (Multi-interface Version)
• Power Consumption 8W MAX, 9W MAX (With IR on)
• Weather Proof Up to IP67-rated for Weather-resistant Performance
• Housing Vandal-proof IK10-rated Metal Housing
• Warranty 3/5 Years
• Dimensions Φ130mmX115mm
• Weight 780g
