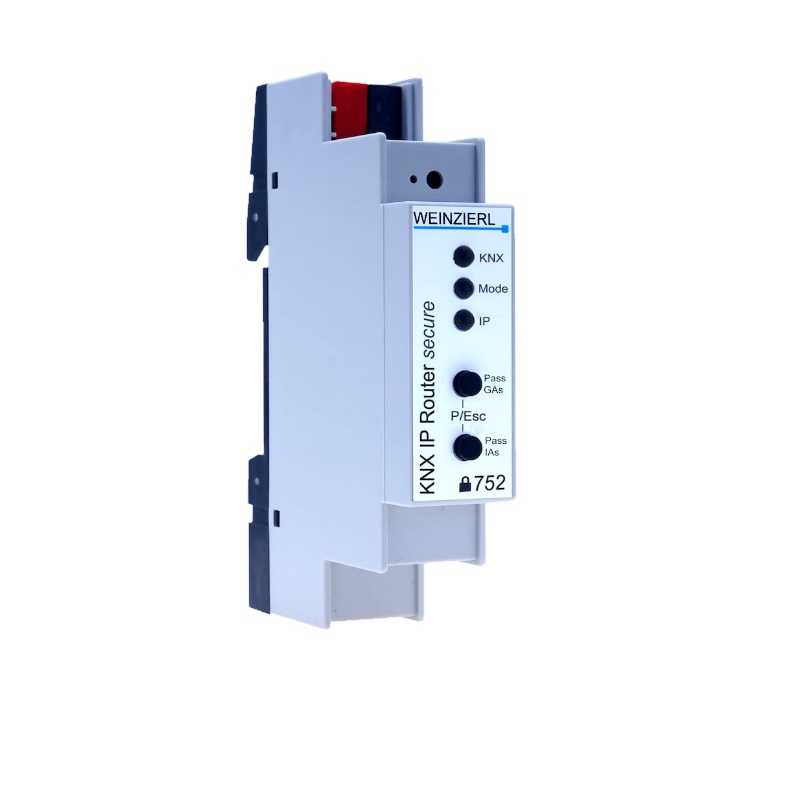

KNX IP Router 752 secure – KNX IP router

The KNX IP Router 752 secure enables the secure forwarding (routing) of telegrams between different lines over a LAN (IP, Ethernet) as a fast backbone. As a secure router, the device enables the connection of unsecured communications on a KNX TP line with a secure IP backbone. The KNX IP Router 752 secure has an extended filter table for main group 0..31 and can cache up to 150 telegrams. The device also serves as a secure interface between IP (Ethernet) and KNX and can be used as a programming interface for the ETS®. As a KNX Secure Interface (tunneling), the device prevents unauthorized access to the system. The connection between PC and interface is encrypted.

With the KNX IP Router 752 secure, the KNX bus can be accessed from any point in the LAN. Encryption also enables secure programming over the Internet. The security option can be activated or deactivated in the ETS. The device is characterized by a compact design with a width of only 1 module with (18 mm) and is powered by the KNX bus. The buttons and LEDs on the device allow a local diagnosis of the current operating status and possible communication errors.

Technical Specifications

• Protection (acc. EN 60529): IP20
• Ambient temp. operating: - 5 ... + 45 °C
• Ambient temp. non-op.: - 25 ... + 70 °C
• Rel. humidity (non-condensing): 5 ... 93 %
• Housing: plastic (PC)
• DIN rail mounted device: width: 1 unit (18 mm)
• Features: 2 buttons and 3 LEDs (multicolor)
• Programming: KNX programming button with LED (red)
• Ethernet Type: 100BaseT (100MBit/s)
• Supported internet protocols: ARP, ICMP, IGMP, UDP/IP, TCP/IP, DHCP and Auto IP
• Device model: 0x091A
• Medium: IP/TP
• KNX Security (AES-128): Incl. Tunneling V2, Core V2
• Connections: Up to 8 KNXnet/IP Tunneling connections simultaneously
• Filter table: Extended filter table for main group 0..31
• Max. APDU length: 55
• KNX Bus: approx. 20 mA
• Bus connector: for KNX (RD / BK)
• Socket: LAN RJ-45
• Weight: approx. 40 g
