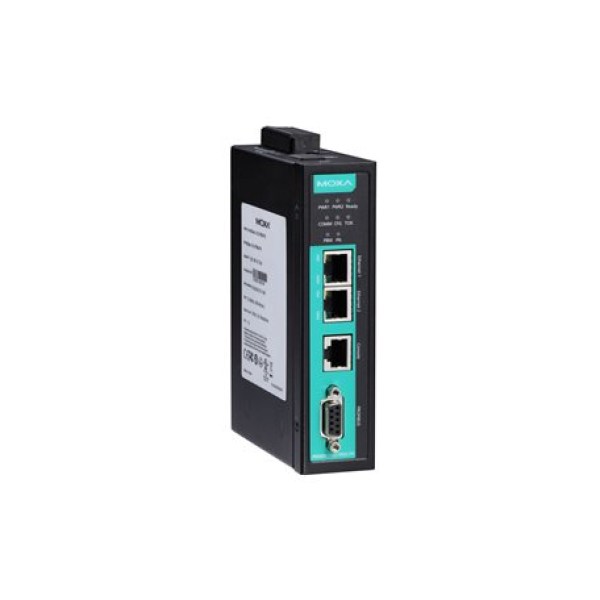

The MGate 5102-PBM-PN gateway provides a communication portal between PROFIBUS devices (e.g., PROFIBUS PLC or drive) and the PROFINET host. All models are protected by a robust metal casing, are DIN-rail mountable, and offer optional built-in optical isolation. PROFIBUS and Ethernet status LED indicators are provided for easy maintenance. The robust design is suitable for industrial applications such as oil and gas, power, process automation, and factory automation.

Features

• Protocol conversion between PROFIBUS and PROFINET
• Supports PROFINET IO device
• Supports PROFIBUS DP V1 master
• Auto-scan PROFIBUS devices and easy configuration
• Web-based GUI for I/O data visualization
• Built-in Ethernet cascading for easy wiring
• microSD card for configuration backup/duplication and event logs
• Built-in I/O monitoring and diagnostic information for easy troubleshooting
• Status monitoring and fault protection for easy maintenance
• Supports dual redundant DC power inputs and 1 relay output
• Models available with operating temperatures between -40 and 75°C
• Serial port with 2 kV isolation protection
• Security features based on IEC 62443
