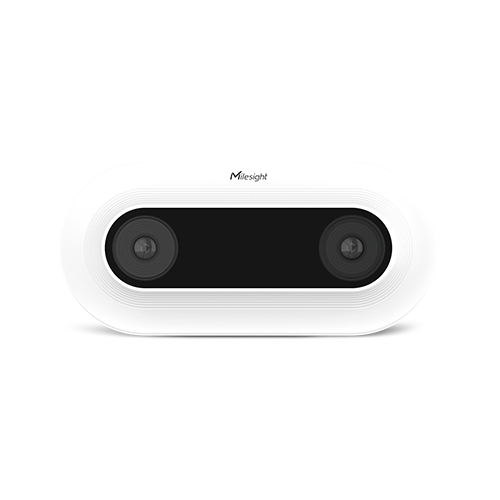

VS125 AI Stereo Vision People Counter

The VS125 utilizes advanced binocular stereo vision technology and robust AI algorithms to deliver precise people counting and attribute recognition. With the ability to stitch up to 16 devices, it provides comprehensive coverage for most detection areas, empowering the capabilities of industries such as retail and building management.
The people counter employs binocular technology for stereo vision depth mapping and RGB for visible light imaging. Harnessing state-of-the-art deep learning algorithms, it integrates detection outcomes to provide exceptionally accurate target recognition. With advanced features such as U-turn filtering, they significantly enhance people counting accuracy, achieving up to 99.8%.
The AI Stereo Vision People Counter VS125 allows for flexible installation at heights between 2.2 and 6 meters. It meticulously counts bidirectional and regional flows, supporting up to four customizable multi-rule lines and regions for comprehensive and accurate data collection. Moreover, it can calculate the duration of stays within specific areas, providing more comprehensive and valuable people counting information.

Technical Features

• Sensor 2 x 4MP Sensor (2688 x 1520)
• Installation Height 2.2 ~ 6m
• FoV Installation Height ≤ 3m: 106° Horizontal, 69° Vertical
• Installation Height ≤ 4m: 97° Horizontal, 62° Vertical
• Installation Height ≤ 5m: 94° Horizontal, 60° Vertical
• Installation Height ≤ 6m: 73° Horizontal, 45° Vertical
• Recognition Rate Up to 99.8%
• Required Illumination 0 lux with iR illuminators On
• Ethernet Port 1 × RJ45 10/100 Mbps (PoE PD)
• Network Protocol MQTT(s), HTTP(s), 802.1x, SSH, NTP, etc.
• Power Input 1 × DC Jack Connector
• DI/DO 45292
• Serial Interface 1 × RS485 (Under development)
• Wi-Fi IEEE 802.11 b/g/n, 2.4GHz (AP Mode for configuration)
• Button 1 × Reset/Wi-Fi Button
• LED Indicators 1 × RGB LED indicator
• Local Storage Store up to one million data records and supports to export csv file
• Power Supply 802.3af PoE
• or DC 12V/1A
• Power Consumption 5.9W
• Operating Temperature -20°C ~ 50°C
• Relative Humidity 0 ~ 95% (Non-condensing)
• Ingress Protection IP40
• Dimension 185 × 85 × 34 mm (7.26 × 3.35 × 1.34 in)
• Weight 275g
• Installation Ceiling Mounting, Extended Ceiling Mounting & Lintel Mounting (with Optional Multifunctional Bracket)

Application

• ideal for scenarios requiring rich information
• information
• Ethernet transmission
• PoE power supply
