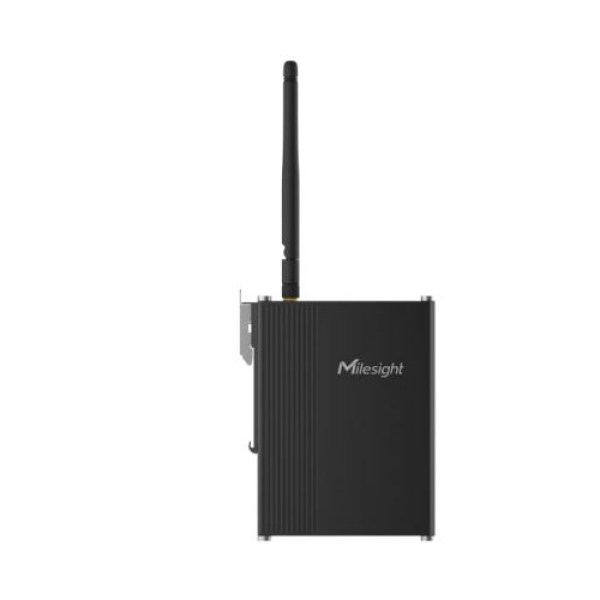

IOT Controller LoRaWAN

Integrating multiple and various kind of industrial interfaces for monitoring and control field sensors or devices simultaneously. Besides the 4~20 mA & 0~10 V type analog interfaces, the UC300 firstly adopts 2 RTD inputs for accepting and converting 2/3 wires PT100 sensors‘ resistance signal into 4-20 mA current signal with a range from -200°C to 800°C. Users are able to set up 16 commands based on custom trigger conditions & actions to realize intelligent task like timing data collection. Milesight UC300 IoT controller can execute the commands autonomously even when the network is unavailable.

Technical Specifications

• Technology LoRaWAN®
• OTAA/ABP Class C
• Interface Type 3.5 mm Terminal Block
• GPIO 4 × DI + 2 × DO
• Serial Port 1 × RS232 + 1 × RS485
• Analog Input 2 × 4~20 mA, 2 × 0~10 V, 2 × PT100 RTD Input
• Configuration Port 1 × Type-C
• LED Indicators 1 × System, 1 × ACT
• Built-in Watchdog, Timer
• Operating Temperature -20°C ~ 60°C (-4℉ to +140℉)
• Installation Desktop, Wall Mounting, DIN Rail Mounting
• Dimensions 93 × 70 × 22 mm (3.66 × 2.76 × 0.87 in)
• Weight: 142.3g
