Description

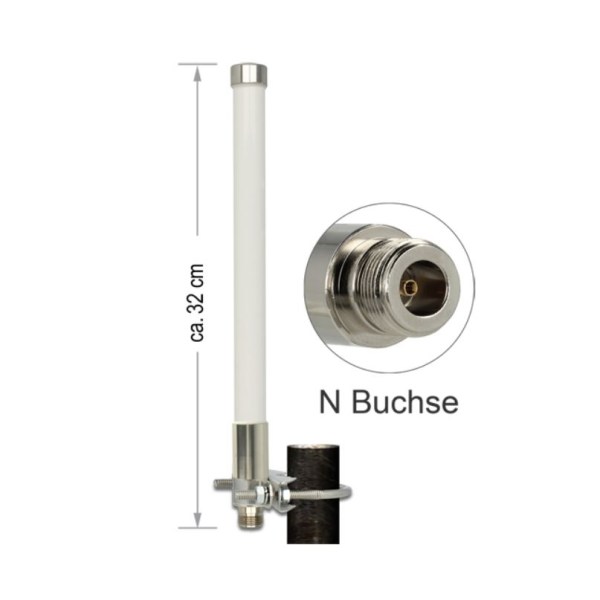

This antenna allows the use of the 868 MHz band both indoors and outdoors.
Technical Specifications
- Connector: 1 x N jack
- Antenna type: collinear dipole array
- Frequency range: 860 - 870 MHz
- Antenna gain: 3 dBi
- Impedance: 50 Ohm
- Polarization: linear, vertical
- Horizontal beam width HBW: 360 °
- Vertical beam width VBW: 60 °
- VSWR: 1.5
- Transmission power: max. 100 W.
- Operating temperature: -40 ° C ~ 80 ° C
- Protection class: IP65
- Housing material: UV-resistant GFRP
- Color: white
- Length: approx. 32.0 cm
- Diameter: approx. 2.2 cm
- Weight: antenna: approx. 145 g, mounting material: approx. 75 g
