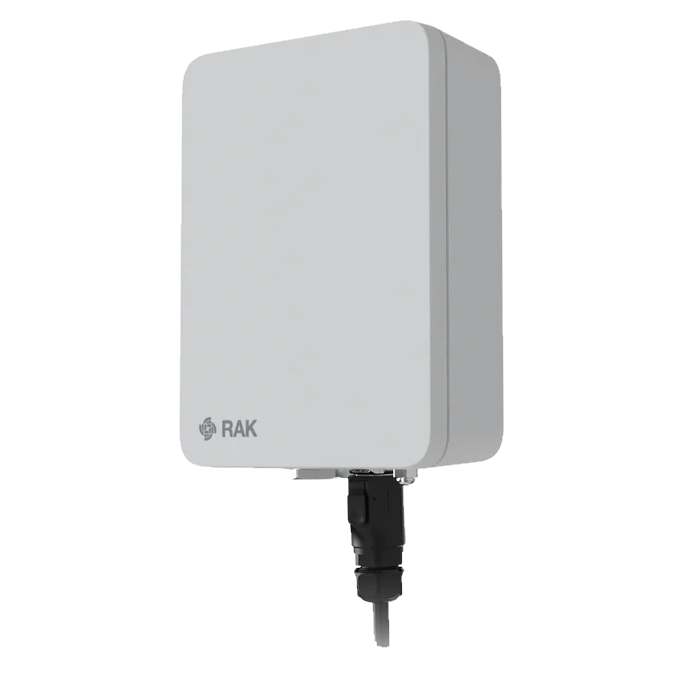

RAK7267 WisGate Soho Pro Gateway

SKU: RAK-715103
MPN: 715103

Sales price without tax 254,00 €

RAK7267 8-channel 800 MHz LoRaWAN gateway (Europe) with DC cable

Ask a question about this product

Description

The RAK7267 WisGate Soho Pro is an innovative 8-channel LoRaWAN gateway designed for both indoor and outdoor installations. This gateway supports the backhaul of Wi-Fi and cellular networks, with the gateway's enclosure specifically adapted to allow LoRa, LTE, Wi-Fi and GPS antennas to be inside the enclosure.

In addition to connectivity, this gateway offers a Unify IP67 enclosure, which protects the internal components from dust and water. The display has a weatherproof, fireproof casing made of ABS plastic, specially designed for outdoor environments.

RAK7267 runs on WisGateOS2, which is based on the latest OpenWrt kernel. This new version incorporates the latest security updates, such as OpenSSL 1.1, and allows access to multiple accounts. The web interface has been redesigned and now supports the installation of multiple extensions. It also allows remote management via WisDM for gateway customisation.

This outdoor gateway can be powered by a 9~36 V DC wide-range battery and the RAK solar battery system.

Technical features

Computing	MT7628, DDR2 RAM 256 MB
Frequency	EU868/US915/AS923/AS923-1/AS923-2/AS923-3/AS923-4/AU915/IN865/RU864/KR920
LoRa feature	SX1303 On Board
	8 Channels
	RX Sensitivity: -139 dBm (Min)
	TX Power: 27 dBm (Max)
	Listen Before Talk
Cellular Feature	Supports Quectel EG915U-EU/EG915U-LA/EG915Q-NA(IoT/M2M -LTE Cat 1 module)
	EG915U-EU for EMEA/Brazil/Australia/New Zealand Region LTE FDD: B1/B3/B5/B7/B8/B20/B28 GSM: B2/B3/B5/B8
	EG915U-LA for Latin America Region LTE FDD: B2/B3/B4/B5/B7/B8/B28/B66 GSM: B2/B3/B5/B8
	EG915Q-NA for North America Region LTE FDD: B2/B4/B5/B12/B13/B66/B71
Wi-Fi Feature	Frequency: 2.4 GHz (802.11b/g/n)
	2x2 MIMO
	RX Sensitivity: -95 dBm (Min)
	TX Power: 20 dBm (Max)
	Operation channels: 2.4 GHz: 1-13
Power Supply	9~36 V_DC Compatible with RAK Solar Battery Kits
Antenna	LoRa/LTE/WiFi/GPS: Internal antenna
	LoRa Frequency Range: 863 MHz~928 MHz Peak Gain: 2.5 dBi VSWR: ≤ 1.5 Efficiency: >85% Polarization: Vertical
	LTE Frequency Range: 700 MHz~960 MHz/1710 MHz~21700 MHz Peak Gain: 3 dBi VSWR: ≤ 3 Efficiency: >60% Polarization: Vertical
	WiFi Frequency Range: 2400 MHz~2500 MHz Peak Gain: 2 dBi VSWR: ≤ 2.5 Efficiency: >75% Polarization: Vertical
	GPS Frequency Range: 1575 MHz~1602 MHz Peak Gain: 28 dBi VSWR: <2 Polarization: RHCP
Ingress Protection	IP67
Dimension	180 mm x 130 mm x 60 mm
Enclosure Material	ABS plastic
Operating Temperature	-30˚ C to +55˚ C
Operating Humidity	0~95 % RH non-condensing
Installation Method	Pole mounting
