WisMesh Ethernet MQTT Gateway Gateway MQTT Meshtastic

What Is WisMesh Ethernet MQTT Gateway?

The WisMesh Ethernet MQTT Gateway is the solution to connect your Meshtastic devices with the cloud. It provides an interface from your Meshtastic nodes to either the Meshtastic MQTT Broker or to your own MQTT Broker. Whether you want to send sensor data, location information, or even text messages to the cloud, this device is the one you need.

This Meshtastic MQTT PoE Gateway uses our WisBlock RAK4631 Core module, which is pre-flashed with the Meshtastic firmware. Besides the LoRa connectivity, it uses our RAK13800 Ethernet module to connect to the internet and is placed on our RAK19007 Base Board.

The RAK19018 PoE module is an optional accessory that allows the gateway to be powered through the Ethernet cable.

Select your preferred configuration:

• Ethernet Only for basic connectivity.

• Ethernet + PoE for a streamlined setup with Power over Ethernet support.

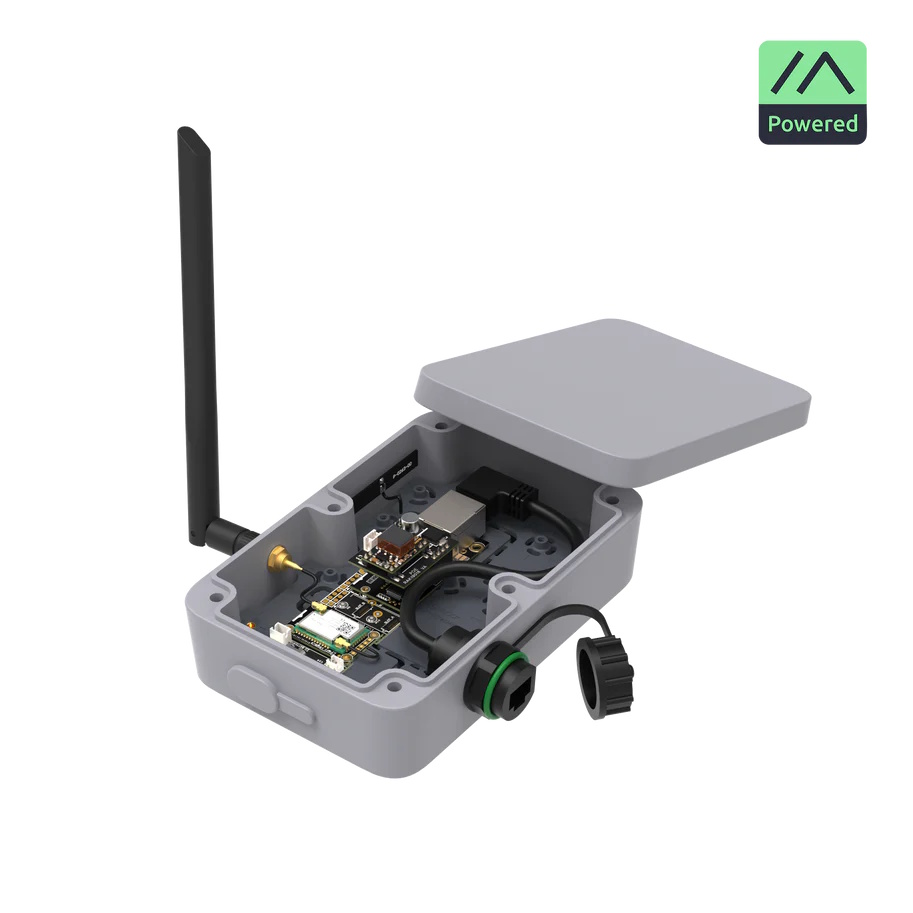

Both bundles are pre-assembled and ready to deploy for immediate use. It comes assembled in our Unify Enclosure 150 mm x 100 mm x 45 mm with an external LoRa antenna and waterproof Ethernet connector.

The WisMesh Ethernet MQTT Gateway comes pre-assembled and pre-flashed with the original Meshtastic firmware-RAK4631_eth_gw, which supports JSON over MQTT.

Everything required to start is to set up our Ethernet Gateway with the Meshtastic app for mobile through BLE.

Why You Need WisMesh Ethernet Gateway

The WisMesh Ethernet MQTT Gateway is the ideal solution for connecting your Meshtastic network to the cloud with a stable, wired connection. Designed for reliability, it seamlessly integrates with MQTT brokers, enabling efficient data transmission for sensor readings, location tracking, and text communication over Ethernet.

Why it’s useful:

• Reliable wired connectivity – Ensures a stable connection between your Meshtastic network and an MQTT broker via Ethernet.

• Efficient data transmission – Supports JSON over MQTT for streamlined communication of sensor data, messages, and GPS locations.

• Pre-assembled & ready to use – Comes pre-flashed with Meshtastic firmware, so you can deploy it immediately.

• PoE option available – Can be powered via Ethernet with the optional RAK19018 PoE module, reducing cable clutter.

• Seamless integration – Works with the RAK13800 Ethernet module and RAK19007 Base Board for a complete connectivity solution.

Key Features of WisMesh Ethernet MQTT Gateway

• WisBlock RAK4631 Core Module

  • Nordic nRF52850 WisBlock Core module, pre-flashed with the Meshtastic firmware

  • Bluetooth Low Energy 5.0 protocol stack

  • Nordic nRF52840:

    • Ultra-low-power MCU

    • 32-bit ARM® Cortex-M4F CPU

    • 64 MHz CPU clock

    • 1 MB Flash, 256 KB RAM

  • Semtech SX1262:

    • Low power high range

    • LoRa® transceiver

• WisBlock RAK19007 Base Board

  • 30 mm x 60 mm with 4 sensor slots and 1 IO slot

  • USB Type C debug port

  • 1 slot for WisBlock Core MCU

• WisBlock RAK13800 Ethernet Module

  • Based on WIZnet W5100S-L chip

  • Support 4 independent SOCKETs simultaneously

  • Support SOCKET-less command

• WisBlock RAK19018 PoE module (optional)

  • Based on Silvertel Ag9905MT

  • IEEE802.3af compliant

  • Input voltage range: 36V to 57V

• WisMesh Antenna

  • Black high-performance LoRa antenna

  • High efficiency

  • Omnidirectional

  • Vertically polarized

  • 9xx MHz variant

    • Frequency Range: 902~928 MHz

    • VSWR: ≤ 1.5

  • 8xx MHz variant

    • Frequency Range: 863~870 MHz

    • VSWR: ≤ 1.3

Key Benefits of WisMesh Ethernet MQTT Gateway

The WisMesh Ethernet MQTT Gateway delivers a low-latency, interference-free connection, making it ideal for industrial applications, large-scale sensor deployments, and mission-critical IoT networks.

• Consistent and low-latency data transmission: Eliminates Wi-Fi instability with a direct Ethernet connection for real-time IoT data flow.

• Reliable power options: Supports Power over Ethernet (PoE) and DC input, ensuring continuous operation in remote or hard-to-reach locations.

Use Case #1

In disaster-stricken areas where traditional communication infrastructures are compromised, the WisMesh Ethernet MQTT Gateway enables first responders to maintain real-time communication, coordinating rescue efforts effectively.

Use Case #2

For industrial IoT applications, the gateway integrates remote sensors monitoring equipment health, allowing maintenance teams to receive timely alerts and perform predictive maintenance, reducing downtime.

What’s in the Box

• With Unify Enclosure 150 mm x 100 mm x 45 mm

  • 1 pc WisMesh Ethernet Gateway

  • 1 pc WisMesh Blade Antenna

  • 1 pc USB Cable
