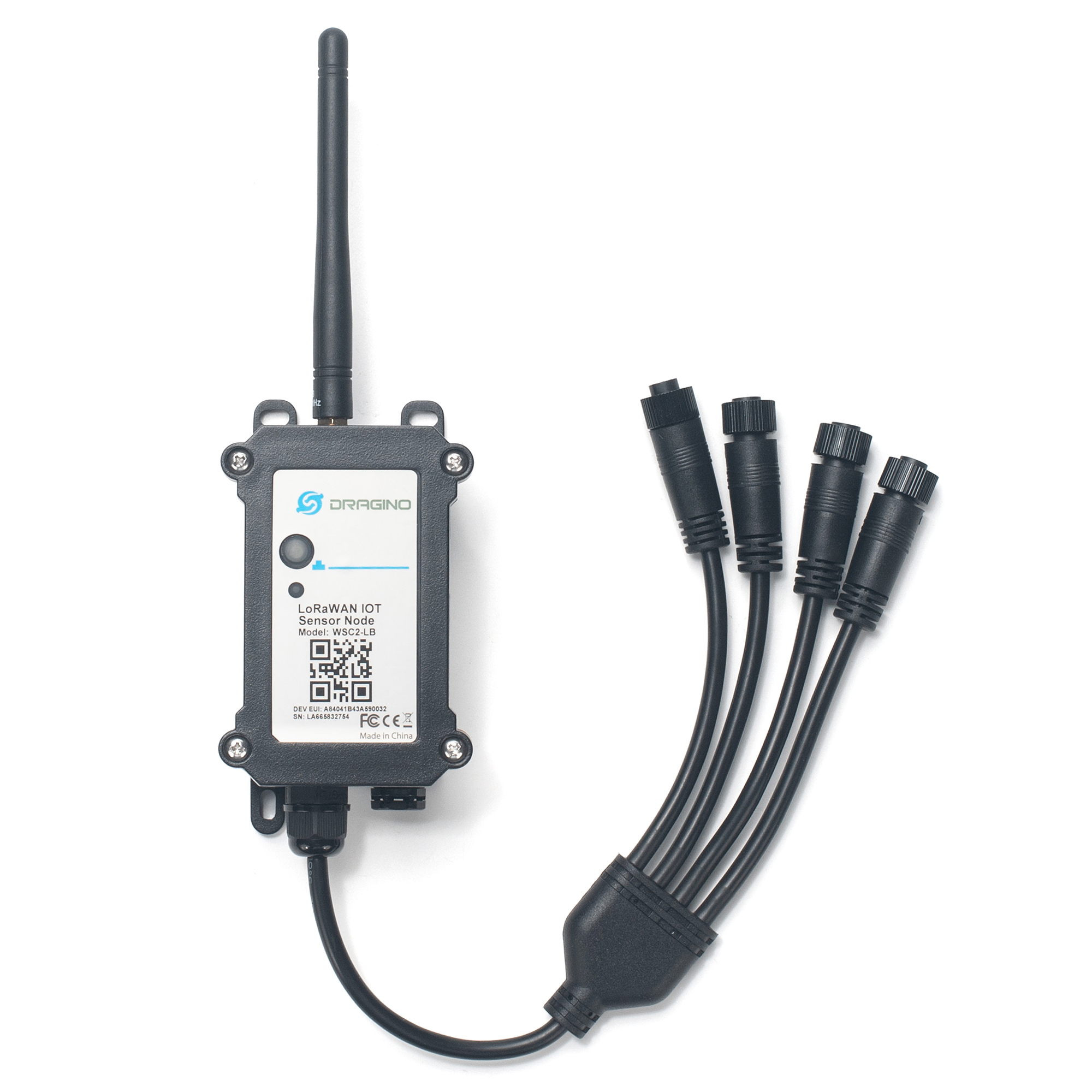

WSC2-L-EU868 LoRaWAN Wireless Transmitter

The Dragino WSC2-L is the main unit in Dragino Weather Station solution which desianed for measuring atmospheric conditions to provide information for weatherforecasts and to study the weather and climate.WSC2-L can reads values from various sensors and upload these sensor data to IoT server via LoRaWAN wireless protocol. WSC2-L supports input and 12V recharge power and build in 1000mAh rechargeable Li-ion battery. lf the user needs to connect other sensors, please kindly note the externalpower supply is required. WSC2-L supports connecting 3rd party RS485 multiple sensors. Users can purchase DR-F6C-4M one-to-four cables to connect more sensors according to their needs. A high-performance model designed for comprehensive environmental monitoring. It supports a wide range of sensors and is powered by an external solar panel, MPPT controller, and storage battery—ideal for demanding, long-term outdoor deployments in agriculture and feld research.

Technical Specifications

• LoRaWAN 1.0.3 Class A
• Frequency band: EU868
• Ultra-low power consumption
• Support reading the Rain Gauge, Wind Speed/Direction, CO2/PM2.5/PM10, Rain/Snow Detect, Temperature, Humidiity, Iillumiance, Pressure, Total Solar Radiation, PAR
• Support WSS-09 9 in 1 Sensors: Wind Speed, Wind Direction, Temperature,  Humidity, Air Pressure, Illumination, PM2.5, PM10, Noise
• RS485 Interface for 3rd party Sensors
• Support Bluetooth v5.1 and LoRaWAN remote configure
• Support wireless OTA update firmware
• AT Commands to change parameters
• Downlink to change configure
• IP66 Waterproof Enclosure
• 1000mAh Rechargeable Li-ion battery
• Input and Recharge power: 12v

Applications

• Airport
• Ocean
• Port
• Meteorological
• Laboratory
• Industry & Agricolture
