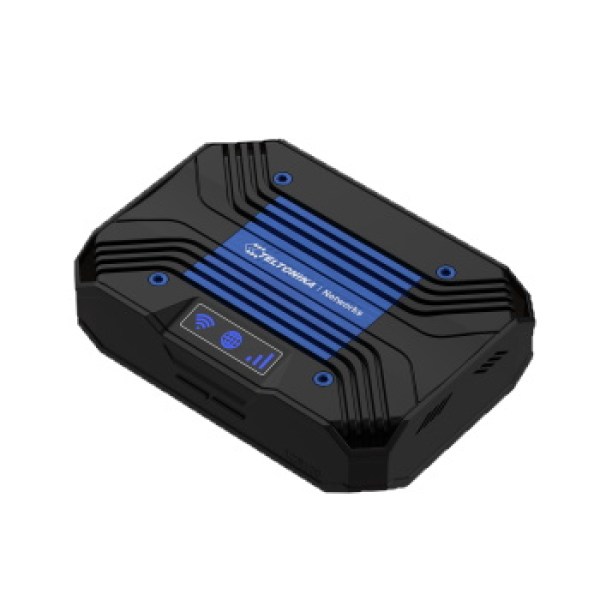

4G WI-FI ROUTER FOR HOME USER

This router represents our extensive industrial IoT experience brought straight to your home. With 4G LTE-A technology you can use TCR100 as a primary or a backup connectivity source. Two Ethernet interfaces and Dual-band Wi-Fi allow to connect multiple devices with ease! TCR100 features connectivity indicators, Wi-Fi, and Wi-Fi Protected buttons for quick and simple setup. Reliable, secure and easy to use – TCR100 is the perfect choice for any home network.

Technical Specifications

Hardware

• Mobile: 4G (LTE) – Cat 6; DC-HSDPA; HSUPA; WCDMA
• CPU: CPU Qualcomm MIPS 24Kc; 650 MHz
• Memory: 128 MB, DDR2 RAM
• Storage: 16 MB, SPI Flash
• Ethernet: 2 x 10/100 porte Ethernet: 1 x WAN (configurabile come LAN), 1 x LAN
• Power supply: 9 – 30 VDC, connettore DC a 4 pin
• Connectors: 1 x 4 pin DC, 2 x Ethernet, 2 x Mobile SMA
• SIM: 1 x slot SIM esterno
• Status LEDs: 1 x stato WAN, 1 x stato Wi-Fi, 3 x intensità di connessione, 2 x stato LAN
• Operating temperature: da -40 °C a 75 °C
• Housing: Scocca in plastica con viti e dissipatore in alluminio
• Buttons: Wi-Fi On/Off, Attivazione WPS, Reset
• Wireless: Wi-Fi Dual-band (2.4 GHz e 5 GHz)
• Dimensions: 150 mm x 37 mm x 105 mm
• Weight: 376g

Software

• Operating system: RutOS (sistema operativo Linux basato su OpenWrt)
• Multiple PDN: Possibilità di utilizzare diversi PDN per accessi multipli alla rete e servizi
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DHCP, DNS, HTTP, HTTPS, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, Telnet, SNMP
• Networking features: NAT, instradamento Statico/Dinamico, Firewall, OpenVPN, IPsec
• Unique networking features: VLAN, Load balancing, controllo della quota mobile, WEB Filter, Network Backup, Auto Failover
• Connection monitoring: Ping Reboot, Periodic Reboot, Wget Reboot, LCP e ICMP per il controllo del collegamento
• Authentication: Chiave precondivisa (Pre-shared key), certificati digitali, certificati X.509
• Keep settings: Aggiornamento del firmware (FW) senza perdere la configurazione corrente
• Monitoring & Management: WEB UI, SSH, SMS, SNMP, JSON-RPC, FOTA, RMS
• Supported languages: Busybox shell, Lua, C, C++
• Development tools: Pacchetto SDK con ambiente di compilazione fornito
