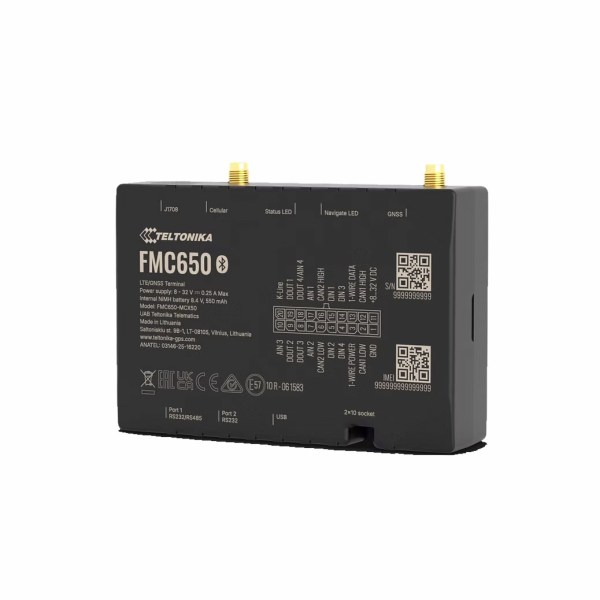

FMC650 - 4G LTE Bluetooth dual SIM GPS Tracker

Teltonika FMC650 is a direct successor to current most popular 4G PROFESSIONAL lineup device – FMC640. FMC650 has 4G (LTE Cat 1) network coverage including 2G (GSM) fallback compatibility. Device equipped with GNSS and LTE modules, external GNSS and LTE antennas. Separate GNSS module improves the accuracy of the track, making FMC650 more suitable for free flow electronic tolling system integration. Compared to FMC640 – FMC650 has a new processor that improves the devices computation power along with increased device internal memory it can be tailored to more specific use cases. Switchable CAN terminators that will allow you to use the device in CAN network with numerous nodes. Lastly, it can be powered via USB for easier configuration process. All the features that are supported by FMC640 is also supported by FMC650, therefore it will maximize your fleet efficiency with features like FMS CAN data (J1939), fuel CAN data (J1708), tachograph live data (K-Line), remote tachograph file download, various third party RS232 or RS485 devices support and Dual-SIM or eSIM compatibility. Terminal is suitable for applications like international logistics, refrigerated transport, agriculture, construction & mining, security & emergency services and even more.

TECHNICAL FEATURES

• Name MeiG SLM320 -PE2C, MeiG SLM320-L16A
• Technology LTE(CaT1)/ 2G(GSM/GPRS)
• GNSS
• Module Name Airoha AG3335MB
• GNSS GPS, GLONASS, GALILEO, BEIDOU, QZSS
• Receiver L1 and L5 dual-band GNSS receiver
• Tracking sensitivity -162 dBM
• Position accuracy < 2.5 CEP
• Hot start < 1.5 s
• Warm start < 25 s
• Cold start < 32 s
• CELLULAR
• Technology LTE Cat 1, GSM
• 2G bands SLM320-PE2C: B2/B3/B5/B8
• SLM320-L16A: B2/B3/B5/B8
• 4G bands SLM320-PE2C: LTE-FDD:B1/B3/B7/B8/B20/B28; LTE-TDD:B38/B40/B41; SLM320-L16A: LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B20/B28; LTE-TDD:B40
• Data transfer LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL) LTE TDD
• Max 8Mbps (DL)/Max 2Mbps (UL) GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL)
• Data support SMS (text/data)
• POWER
• Input voltage range 8 - 32 V DC with overvoltage (compatible with pulse 5a and pulse 5b) and reverse polarity protection Internal Back-up battery 550 mAh Ni-Mh, 8,4 V battery
• BLUETOOTH
• Name Blue NRG232
• Specification 5.0 + LE
• Supported peripherals Temperature and Humidity sensor, Universal BLE sensors support
• PHYSICAL SPECIFICATION
• Dimension 104,1 x 76,8 x 31,5 mm (L x W x H)
• Weight 197 g
• OPERATING ENVIRONMENT
• Operating temperature (without battery) -40 °C to +85 °C
• Storage temperature (without battery) -40 °C to +85 °C
• Operating humidity 5% to 95% non-condensing
• Ingress Protection Rating IP41
• Battery storage temperature -20 °C to +45°C
• INTERFACE
• Digital Inputs 4
• Digital Outputs 4
• Analog Inputs 4
• 1-Wire 1
• RS232 2
• RS485 1
• CAN J1939 2
• J1708 1
• K-line 1
• GNSS antenna External High Gain (L1+L5)
• GSM antenna External High Gain
• USB 2.0 Mini-USB – device can be powered by USB for easier device configuration
• LED indication 2 status LED lights
• SIM 2x SIM Card (Dual-SIM) or 1x eSIM
• Memory 16 MB internal flash memory and external Micro SD card up to 32GB
• Switchable CAN terminators Supported on CAN1 and CAN2 lines
• FEATURES
• Movement detection Accelerometer
• Scenarios Green/Eco Driving, Over Speeding detection, Jamming detection, Excessive Idling detection, Towing detection, Crash detection, Immobilizer, iButton Read Notification
• Functionalities Auto Geofencing, Manual Geofencing, Trip detection, Odometer, Fuel counter, GNSS Unplug Detection, DDD download and Tacho online data, Offline tracking
• Supported peripherals Garmin, RFID RS232, RFID 1-Wire, iButton 1-Wire, Temperature 1-Wire, LV-CAN200, ALL-CAN300, CAN-CONTROL, CAN FMS (J1939, J1708), K-line data, Continental tire pressure measurement sensor, Iridium SBD (TSM232), Carrier freezer, Log
• Mode, NMEA, TCP ASCII/Binary, Temperature and humidity sensor, Universal BLE sensors support Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep
• Configuration and firmware update FOTA Web, FOTA, Teltonika Configurator
• SMS Configuration, Events, DOUT control, Debug
• GPRS commands Configuration, DOUT control, Debug
• Time Synchronization GNSS, NITZ, NTP
• Fuel monitoring LLS (Analog), Digital LLS (RS232, RS485), LV-CAN200, ALL-CAN300, CAN-CONTROL, CAN FMS, Ultrasonic level sensor
• Ignition detection Digital Input, Accelerometer, External Power Voltage
