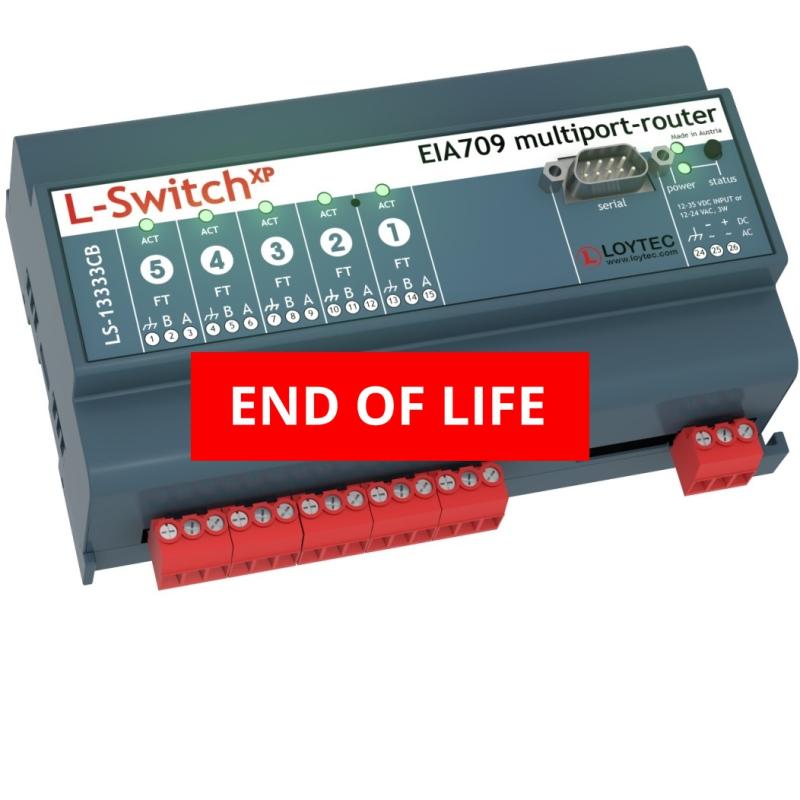

LS-13333CB L-Switch CEA-709 Router
Item no. LS-13333CB
The L-Switch is the solution for interconnecting multiple twisted pair channels (TP / FT-10 or TP / XF-1250 channels) in LonMark Systems. It provides up to five ports and routes packets between these ports. The L-Switch router offers first-class performance and flexibility of use. In order to provide optimal router configuration, the L-Switch is supplied with two, three, or five ports and two operating modes: "Smart Switch Mode" and "Configured Router Mode".
Specifications
- Weight
- 2000 g
Description
This product is EOL and has been replaced by LIP-3333ECTC + LIP-1ECTC
Features
• Physical separation and logical connection of up to five CEA-709 network segments
• TP / FT-10 channels are compatible with link power
• CEA-709 and ISO / IEC 14908-1 (LonMark System) compliant
• Can be used as a configured router, learning switch, or as a repeater (Smart Switch mode)
• Plug and play installation (Smart Switch mode)
• Forwards packets up to 256 bytes in length
• Supports up to four domains (Smart Switch mode)
• Topology learning with forwarding decision based on subnet / node and group addresses (Smart Switch mode)
• Short propagation delay between ports
• Network diagnostic LEDs
• CEA-709 status and activity LEDs
Specifications
| Dimensions (mm) | 159 x 100 x 60 (L x W x H), DIM008 |
| Installation | DIN rail mounting according to DIN 43880, DIN EN 50022 |
| Power supply |
12‑35 V DC / 12‑24 V AC ±10 %, typ. 3 W |
| Operating conditions | 0°C to 50°C, 10 – 90% RH, protection class: IP40, IP20 (terminals) |
| Interfaces | 1 x TP/XF‑1250 4 x TP/FT‑10 |
| Tools | Configuration via RS-232 (EIA-232) console |
