The Weintek range of touch screen operator panels offers a wide choice of models to meet every application need, from small automation to the control of large industrial processes.All terminals, from the small 4.3” to 10” format, operate with widescreen format, which allows the display of a greater number of information, compared to a traditional display, while at the same time containing external dimensions.

Technical Specifications

• 7" TFT LCD Display, Resolution 800 x 480, Brightness (cd/m2) 300, Contrast Ratio 500:1, Backlight Type LED, Backlight Life Time >30,000 hours.
• 16.7M Colors, LCD Viewing Angle (T/B/L/R) 70/50/70/70, Pixel Pitch (mm) 0.1926(H) x 0.179(V)
• 4-wire Resistive Touch Panel Type, active area accuracy length (X) ±2%, width (Y) ±2%
• Flash Memory 128 MB, RAM 128 MB
• 32-bit RISC 600MHz Processor
• I/O Port USB 2.0 Host x 1, USB Client N/A
• Ethernet 10/100 Base-T x 1
• COM Port COM1: RS-232, COM2: RS-485 2W/4W, Dual Isolation RS-485 N/A
• Built-in RTC
• Input Power 10.5~28VDC, power consumption 1A 12VDC; 500mA 24VDC, built-in power isolation, voltage resistance 500VAC (1 min.), insulation resistance over 50MΩ at 500VDC
• Vibration Resistance 10 to 25Hz (X, Y, Z direction 2G 30 minutes)
• PCB Coating N/A
• Plastic Enclosure
• Dimensions LxHxD 200.4 x 146.5 x 34 mm
• Panel Cutout 192 x 138 mm
• Weight Approx. 0.52 kg
• Panel Mount
• Environment Protection Structure Front panel complies with NEMA4 / IP65, Storage Temperature -20°~60°C (-4° ~ 140°F), Operating Temperature 0° ~ 50°C (32° ~ 122°F), Relative Humidity 10% ~ 90% (non-condensing)
• CE Certificate CE marked

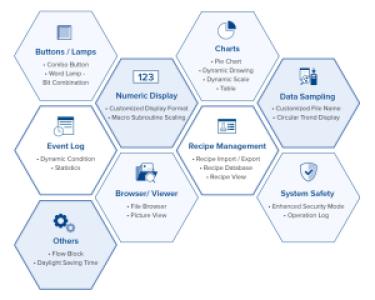

• Software EasyBuilder Pro, EasyAccess 2.0 (optional)
