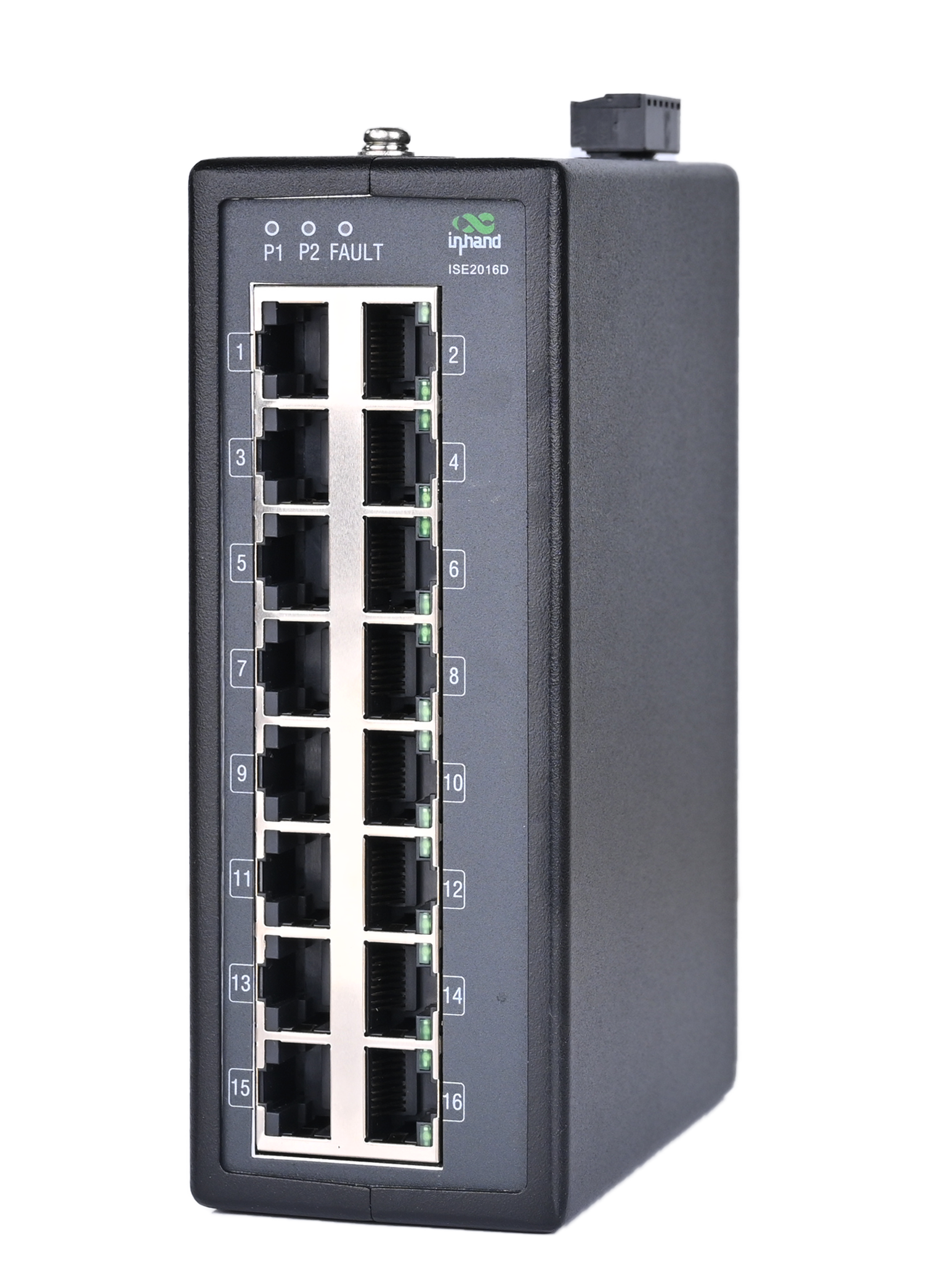

ISE 2016D - Unmanaged Ethernet Switch with 16 ports

EOL replaced by ISE2016D-P-16T-24

16 port Ethernet switch for industrial applications. Support for redundant power supply, lightning-fast access times and high reliability.
Designed to reliably operate electrical substations with a high level of noise: Passed the most stringent IEC 61850-3 and IEEE 1613 EMC tests (electrical power substations) Designed to operate in a wide range of temperatures: operating temperature: -40 ° C to + 85 ° C

Designed for industrial installations: Aluminum casing, Degree of protection: IP40, Industrial terminal blocks for power supply and I / O connections

Advanced network functions: IEEE802.3 / 802.3u / 802.3x - flow control (half duplex / full duplex), Data exchange: package store & forward, 10 / 100M Full / half-duplex MDI / MDI-X adaptive, Auto -negotiation, Broadcast storm control: IEEE 802.1x enhance user authentication VLAN (IEEE802.1q):

VLAN customization to simplify network planning and improve LAN security

Features

• Ethernet ports: 16x 10 / 100BaseTX full / half duplex auto-sensing RJ45 ports
• LED Display: PWR1, PWR2, STAT, FAULT, FX
• Critical Alarm Relay: Form-C failsafe contact relay: 1A at 30VDC
•  MAX Voltage: 250V AC / 220V DC MAX Current: 5A at 250V AC
• MAX Switching Power: 500VA, 60W
• Input voltage: 24 VDC (12 ~ 48V DC) 7 screw terminals
• Overvoltage protection: present
• Reverse Polarity Protection: present
• Consumption: 5W MAX
• Dimensions (W × H × D): 75mm × 132.6mm × 113mm
• Weight: 0.6kg
• Casing: IP40 protection
• Installation: DIN rail mounting
• Operating temperature: -40 ~ +85 ° C
• Storage temperature: -40 ~ +85 ° C
• Humidity: 5% ~ 95% RH
• Switching Latency: 4 us (100Mbps)
• Switching Band: 1 Gbps
• MAC table size: 8k
• Frame buffer memory: 1 Mbit
