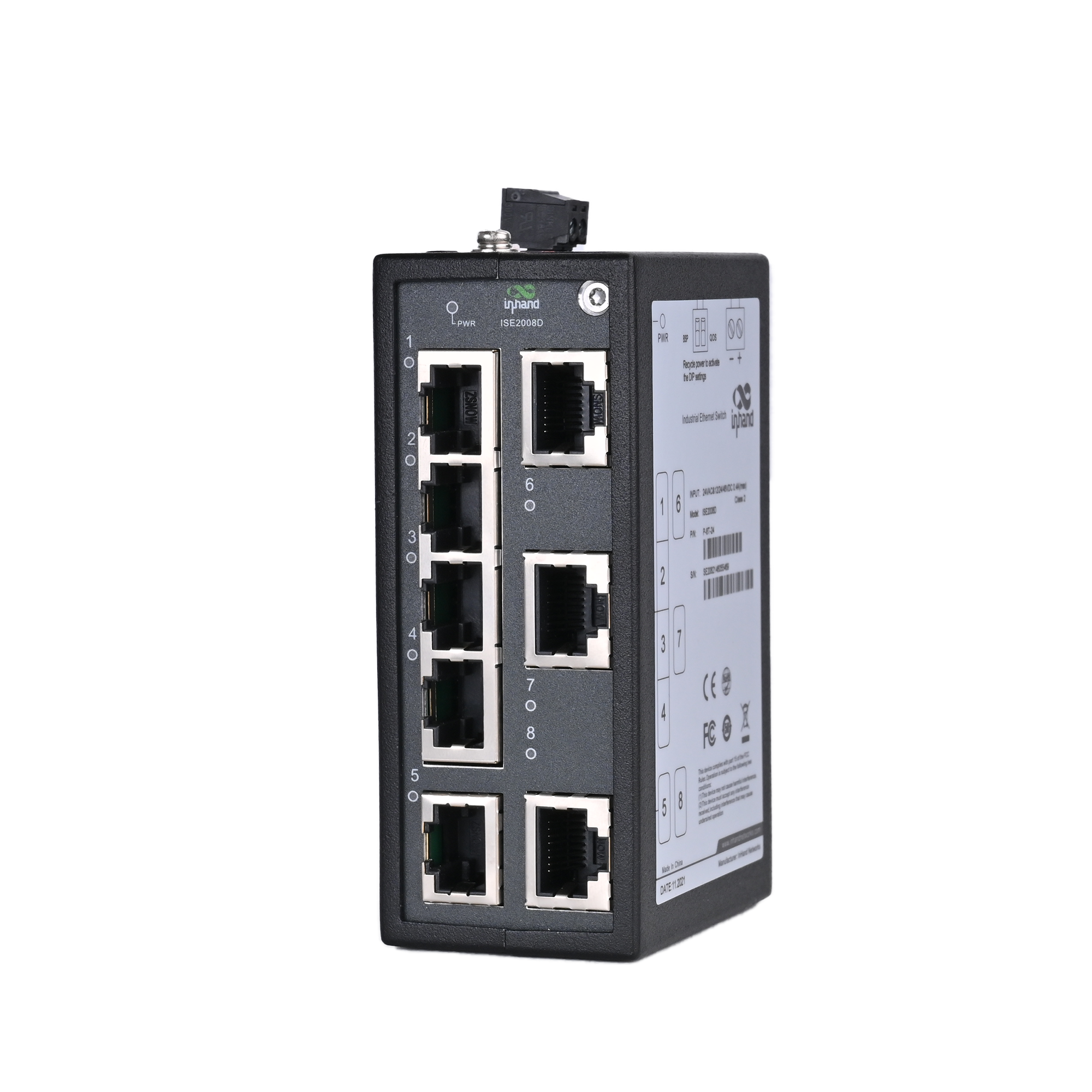

8-Port Unmanaged Industrial Ethernet Switch

SKU: ISE2008D-P-8T-24
MPN: ISE2008D-P-8T-24

Sales price without tax 66,00 €

ISE2008D-P-8T-24: 8-port Layer 2 unmanaged Industrial Ethernet Switch. 8 × 10/100 BaseT Ports. IP30 Protection Class, Operating Temperature from -40°C to +75°C. Single power input: 12/24/48 VDC (9.6~60VDC) or 24 VAC
(18~30 VAC) (Only connect to class 2 power supply).

Ask a question about this product

Description

The ISE2008-P unmanaged switch with 8*10/100 Base-T(X) RJ45 ports is designed to meet the power, size, weight and environmental tolerance requirements for industrial applications. It combines a high-temperature and high-voltage design, enterprise-grade cable speed forwarding performance, rugged housing, industrial circuit protections and other industrial-grade features in one. Plug and play to meet the demands of harsh industrial environments.

InHand ISE2008D-P provides high quality industrial protection with a wide operating temperature range, -40℃ ~ + 75℃ against weather such as thunderstorms.

ISE2005D-P uses industrial-grade chips to adapt to harsh environments. It has the advantages of high transmission speed, stable transmission and low power consumption.

Technical Specifications

Type: Unmanaged Industrial Ethernet Switch, Layer 2, Storeand-Forward
Ports: 8 x 10/100 BaseT (or 2 x 100BaseX SFP + 6 x 10/100 BaseT)
Switching Performance: 16 Gbps backplane bandwidth, 4K MAC, 1.5 Mbit buffer, <10 us latency
Power: 9,6-60 VDC & 18-30 VAC, 5 W
Input voltage: 24V DC (9.6~60V DC)
Environment: -40 to +75 C operating, IP30, fanless
Change Bandwidth: 1,6 Gbps
MTBF: 35 years
Power consumption: ＜ 5W
Cooling without fan
EMC: IEC 61000-4-2/3/4/5/6/8/18, Class 3-5
Certificazioni: CE, FCC, UL
Dimensions: 40 x 100 x 61,8 mm
Weight: 0.23kg
