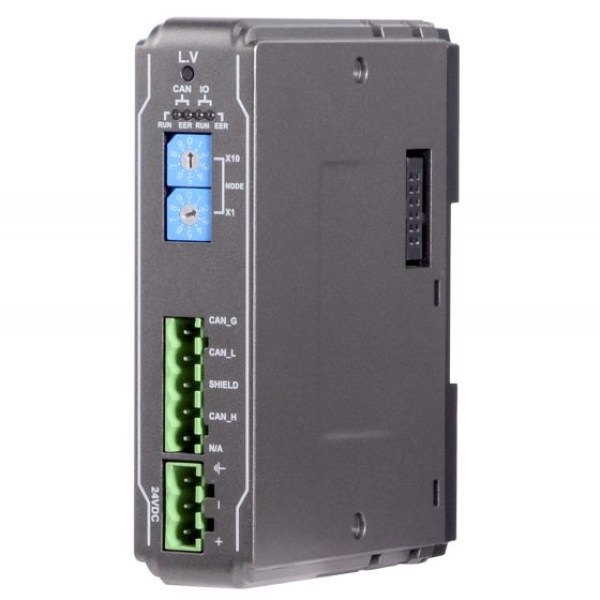

CANopen Node Coupler

CANopen Node Coupler

Technical Specifications

• The number of Bus Terminals Depends on Power Consumption
• Digital Input Point: Max. 256
• Digital Output Point: Max. 128
• Analog Input Channel: Max. 64
• Analog Output Channel: Max. 64
• Data Transfer Rate: 50k~1 Mbps
• Protocol: CANopen Slave
• Isolation: CAN bus Isolation : Yes
• Power Supply: 24 VDC (-15%/+20%)
• Power Dissipation Nominal: 100mA@24VDC
• Current for Internal Bus: Max 2A@5VDC
• Current Consumption: 170mA@5VDC
• Power Isolation: Yes
• Back-up Fuse: ≤ 1.6A Self-recovery
• PCB Coating: Yes
• Enclosure: Plastic
• Mount 35mm: DIN rail mounting
• Protection Structure: IP20
• Storage Temperature: -20° ~ 70° C (-4° ~ 158° F)
• Operating Temperature: 0° ~ 55° C (32° ~ 131° F)
• Relative Humidity: 10% ~ 90% (non-condensing)
• EMC Immunity Conforms to EN 55032: 2012+AC: 2013, Class A EN 61000-6-4: 2007+A1:2011 EN 55024: 2010+A1: 2015 EN 61000-6-2:2005
• UL cULus Listed
• Dimensions WxHxD 27 x 109 x 81 mm
• Weight Approx. 0.15 kg
