ACCON-NETLink-PRO Compact Protocol Converter

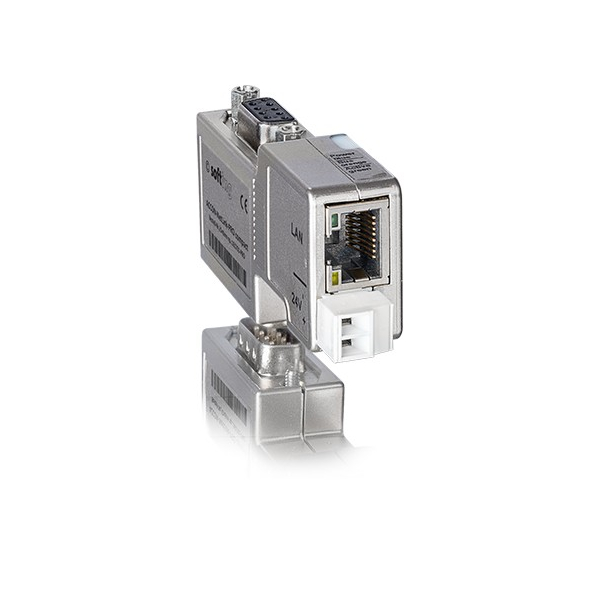

ACCON-NetLink-PRO compact enables simple and fast integration of SIMATIC S7-200/300/400 controllers into Ethernet networks. This enables programming, configuration, and SCADA applications such as STEP7, TIA Portal, WinCC or OPC Servers to access multiple automation devices robustly and cost-effectively in parallel. The adapter can be plugged directly into the MPI connector and replaces expensive Communication Processors. The looped-through programming device socket allows retroactive piggyback mounting.

For configuration purposes, ACCON-NetLink-PRO compact can be integrated as a programming device in the familiar STEP7 or TIA Portal development tools. In addition, a web interface is available for basic settings, e.g., the PROFIBUS subscriber address or the IP address. SIMATIC S7-200/300/400 controllers without Ethernet connection can also be connected to SIMATIC S7-1200/-1500 controllers with Ethernet connection via the adapter. ACCON-NetLink-PRO compact can be supplied with power directly via the SIMATIC S7 controller or via the 24VDC connection.

Techical Specifications

Integration of S7-200, S7-300 and S7-400 into 10/100 Mbit Ethernet Networks

• Direct communication with one or several controllers in any kind of TCP network structure
• Support of up to 16 TCP simultaneous connections
• Use of standard TCP/IP for communication within plant or company networks and with the Internet
• Expansion of participants using MPI or PROFIBUS via pass-through PG port
• Interference-free integration into existing control systems
• Power supply directly from controller or via external power supply
• Cost-effective solution alternative

Programming Adapter Supporting all Relevant S7 Engineering Tools

• Interface for programming controllers via Ethernet
• Compatibility with STEP7, TIA-Portal, WinCC and WinCC flexible
• Display and configuration of the adapter in STEP7 or TIA portal

Application Integration through RFC1006 and OPC UA

• Connection to HMI station and PLC directly via RFC1006 Ethernet protocol
• Support of OPC and OPC UA by using dataFEED OPC Suite for integration into higher-level systems, e.g. for production management

Technical Data

• PC Communication Interface: 1
• Type of PC Communication Interface: Ethernet 10 Base-T, Ethernet 100 Base-TX
• Connection of PC Communication Interface: RJ45
• MPI/PROFIBUS Communication Interface: 1
• Type of MPI/PROFIBUS Communication Interface: RS485, isolated
• Connection of MPI/PROFIBUS Communication Interface: SUB-D male connector, 9-pin. with PG interface and repeater
• Ambient temperature: 0 °C ... +60°C
• Transport & Storage temperature: -20 °C … +80 °C
• Relative air humidity: 95% RH without condensation
• Housing, Dimensions: 40 x 17 x 64 mm
• Weight: Approx. 110 g
