RAK19007 Base Board 2nd Gen

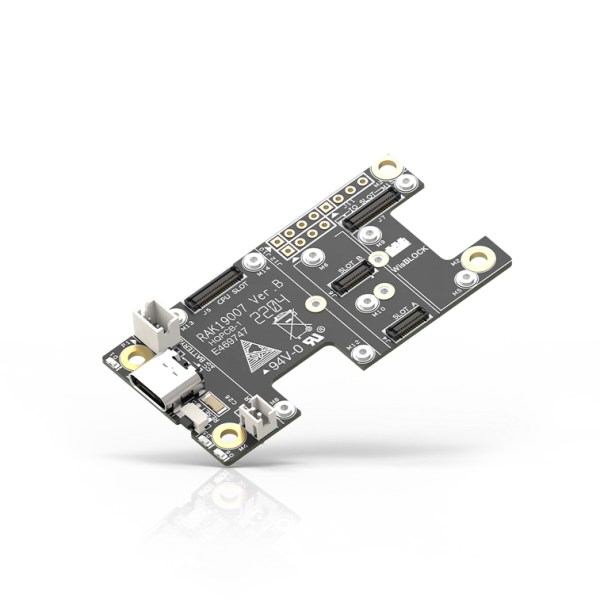

RAK19007 is a WisBlock Base Board 2nd Gen that connects WisBlock Core, WisBlock IO, and WisBlock Modules. It provides the power supply and interconnection to the modules attached to it. It has one slot reserved for the WisBlock Core module and four slots A-D for WisBlock modules. The WisBlock Core is attached on the top side, and the WisBlock modules are attached to the top or bottom side of the RAK19007. The Slot D holds modules up to 23 mm in size, while slots A to C support 10 mm WisBlock modules. Also, there are three 2.54 mm pitch headers for extension interface with BOOT, GPIO, I2C, and UART pins. For convenience, there is a Type-C USB connector that is connected directly to WisBlock Core MCU’s USB port (if supported) or to a USB-UART converter depending on the WisBlock Core. It can be used for uploading firmware or serial communication. The USB-C connector is also used as a battery charging port. WisBlock modules are connected to the RAK19007 WisBlock Base board via high-speed board-to-board connectors. They provide secure and reliable interconnection to ensure the signal integrity of each data bus. A set of screws are used for fixing the modules, which makes it reliable even in an environment with lots of vibrations.

Technical Specifications

• Flexible building block design, which enables modular function realization and expansion
• High-speed interconnection connectors in the WisBlock Base Board 2nd Gen Board to ensure signal integrity
• Supports multiple types of low power MCUs
• Supports multiple types of sensors. A single board can support a combination of two different types of sensors
• Low power battery power supply
• Supports lithium battery charging
• Supports solar panel charging
• Fulfills industrial level design
• Compact size: 30 x 60 mm

Package Inclusion

• 1 pc RAK19007
• 1 pc USB Cable
• 20 pc M1.2*3 Screw
• 15 pc M2.5*4 Screw
