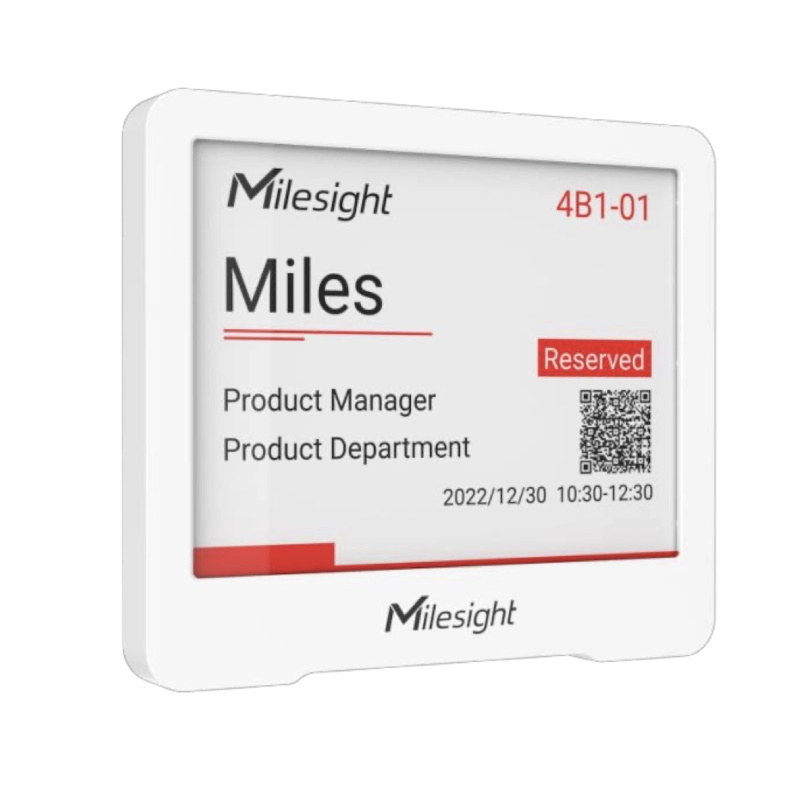

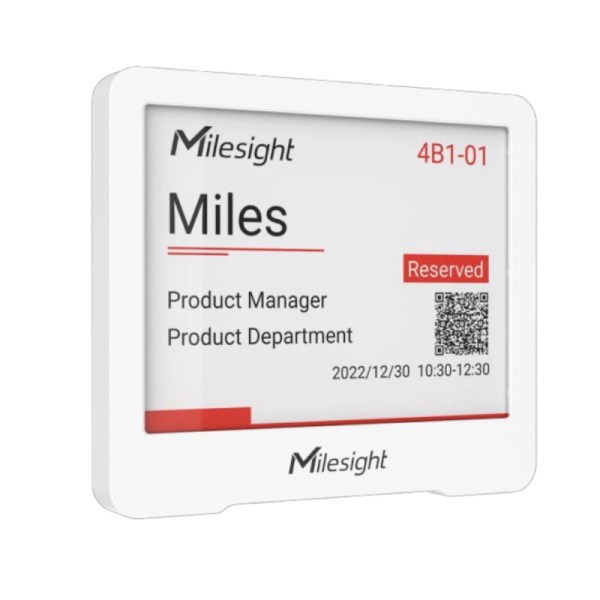

DS3604 IoT E-ink Display

DS3604 is a reflective electrophoretic display offering readability and flexibility. The 4.2-inchactive area contains 400 x 300 pixels and has 1-bit Black/White/Red full display capabilities. DS3604 supports displaying information in customized templates and allows for secondary development through interfaces. Long-capacity batteries and ultra-low power consumption brings long battery life of up to 5 years. DS3604 enables quickly modifying the displayed content remotely and locally through simple operations and allows remote management in bulk. Moreover, DS3604 can be installed in multiple methods and be compliant with standard LoRaWAN® gateways and networks for more integrated applications.

Technical Specifications

• 4.2-inch three-color e-ink screen
• 400×300 pixels display with high contrast and ultra-wide viewing angle
• Ultra-low power consumption with long battery life
• Enable quickly modifying the displayed content remotely and locally
• Support multicast feature for deployment and management in bulk
• Provide customized templates and service interface for self-developed options
• Adapt to multiple scenarios with flexible installation methods
• Equipped with NFC for easy configuration
• Compliant with standard LoRaWAN® gateways and network servers
• Mounting: Wall mounting, 3M tape or wall screws
• Dimensions: 99 × 87 × 10.5 mm (3.90 × 3.43 × 0.41 in)
• Weight: 95.2g (Batteries Included)
