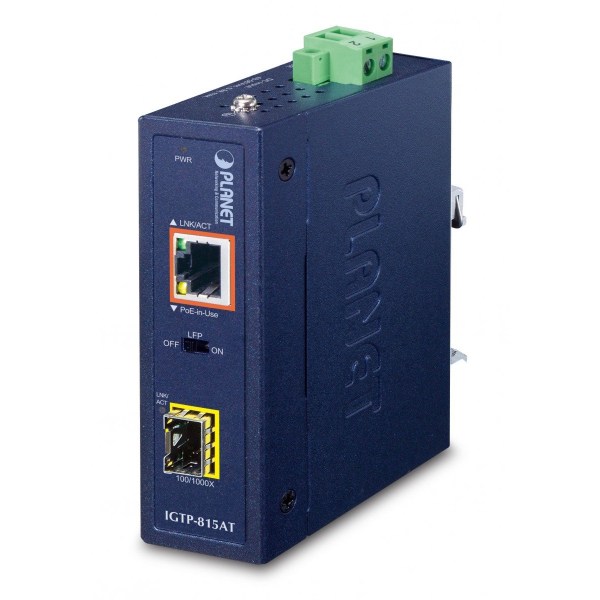

IGTP-815AT Industrial Compact 100/1000BASE-X to 10/100/1000BASE-T 802.3at PoE+ Media Converter

PLANET IGTP-815AT is the smallest, industrial-grade Gigabit PoE+ Media Converter, featuring one 100/1000BASE-X SFP fiber port and one 10/100/1000BASE-T 802.3at PoE+ copper port in an IP30-rated rugged but compact-size case. Being able to operate under the temperature ranging from -40 to 75 degrees C, the IGTP-815AT provides reliable, stable and continuous long-range data transmission and can be installed in any harsh environment without taking space into consideration.

As the trend for an IIoT (Industrial Internet of Things) infrastructure is gradually in demand, the IGTP-815AT is especially designed to make the deployment of an industrial network easy as it comes with a Plug and Play feature. Besides, it is stable and reliable when it comes to fast data and power transmission.

Complying with the IEEE 802.3at Power over Ethernet Plus (PoE+) standard, the IGTP-815AT forwards Gigabit speed Ethernet data transmission and provides a maximum of 36-watt power output over an additional 100m UTP cable to a 802.3af/at PoE PD (powered device) installed in a remote area where sufficient and reliable power input is required. Users can easily upgrade their current networks without the need of software configuration.

Technical Specifications

• 　1-port 10/100/1000BASE-T RJ45 with IEEE 802.3at PoE+ injector function
• 　One SFP slot, supporting 1000BASE-X and 100BASE-FX transceiver dual mode
• 　Complies with IEEE 802.3at PoE Plus end-span PSE
• 　1 IEEE 802.3at/af device powered
• 　Supports PoE Power up to 36 watts for PoE port
• 　Provides DC 48~56V power over RJ45 Ethernet cable to PD with Ethernet port
• 　Auto detects IEEE 802.3at/af equipment and protects devices from being damaged by incorrect installation
• 　Remote power feeding up to 100m
• 　IEEE 802.3at/af PoE splitter devices compatible
• Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex mode on RJ45 port
• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
• DIP switch: LFP (Link Fault Passthrough) and FEF (Far End Fault) mode selection
• IP30 metal case
• DIN-rail and wall-mount designs
• 48V~56V DC  power with reverse polarity protection
• Connective removable terminal block
• Supports 6000 VDC Ethernet ESD protection
• -40 to 75 degrees C operating temperature
• Free fall, shock-proof and vibration-proof for industries
• Temperature:
  • Operating: -40~75 degrees C
  • Storage: -40~85 degrees C
• Humidity:
  • Operating: 5~95% (non-condensing)
  • Storage: 5~95% (non-condensing)
• Dimensions (W x D x H): 30 x 70 x 104 mm
• Weight: 231g
